Home / Products / Wear-resisting parts for repair of 18-100 model bogie

Wear-resisting parts for repair of 18-100 model bogie

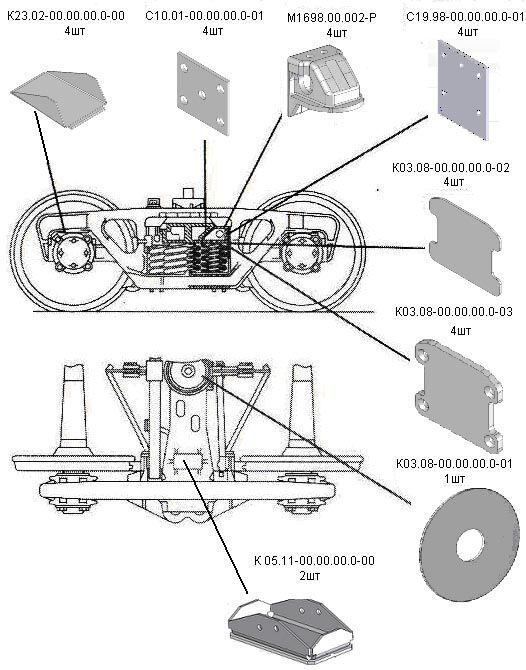

The company produces a full set of wear-resisting parts for repair of 18-100 model bogies in accordance to ТУ У 35.2-30793280-005.2012 (including the parts modernized on project С.14.01).

17

 Parts for 18-100 model bogies of our own production:



Gasket   К03.08-00.00.00.0-01

 3

(to replace М1698.04.01)

Friction plate  100.00.008-1

 4

Plate К03.08-00.00.00.0-02

 5

(to replace М1698.02.003)

Friction plate   100.00.008-3

 6

(to replace 100.00.008-2)

Friction plate    К03.08-00.00.00.0-03

 7

(to replace М1698.02.001)

Contact bank 100.30.005-1

 8

(to replace 100.30.005-0)

Gasket  100.00.027-0

 9

Plate  С19.98-00.00.00.0-01

9

Wedge plate 100.30.001-1

 10

Repair plate С10.01-00.00.00.0-01

 11

Jaw opening battening plate К23.02-00.00.00.0-00

 12

Staple 100.00.070-0

 13

Bogie side bearer cap К05.11-00.00.00.0-00

 14



 The set of spare parts of modernized project C.14.01 includes the following:

 Purchase parts for of 18-100 model bogies

Friction wedge М1698.00.002-Р

15

Rivet  20х65 ГОСТ 10300-80

16



Note: the parts are included into a complete set of delivery

PJSC «RAIL» has property in technical documentation of friction wedge dr. М1698.00.002-Р ТУ У35.2-30793280-003:2010

Gaskets dr. К03.08-00.00.00.0-01 and dr. 100.00.027-0 are placed on bearing surface of centre plate’s place of a bolster. See Pic. 1.

19

Pic. 1

Repair plate dr. С10.01-00.00.00.0-01 is welded to the inclined plane of a bolster. See Pic.2.

20

Pic.2

 Friction plate К03.08-00.00.00.0-03 16mm thick is riveted to the solebar friction assembly (see Pic.3). In modernized model Friction plate К03.08-00.00.00.0-03 10mm thick is riveted, and on top Plate К03.08-00.00.00.0-02 or Contact bank 100.30.005-1 6 mm thick is placed. See Pic. 4.

21

Pic. 3

22

Pic. 4

Plate С19.98-00.00.00.0-01 and Wedge plate 100.30.001-1 are used for welding on wearing vertical surfaces of the friction wedge. See Pic. 5.

23

Pic. 5

Special assemblies Staple 100.00.070-0СБ (see Pic. 6) and Jaw opening battening plate К23.02-00.00.00.0-00СБ (see Pic. 7) are fastened to the base surface of jaw opening.

24

Pic. 6

25

Pic. 7
